DC-6GHz 2W 1db.2db.3db.5db.6db.10db.20db.30db.40db.50db Attenuator with SMA male to female
ZD-AT-6G-2W-SMAM/F

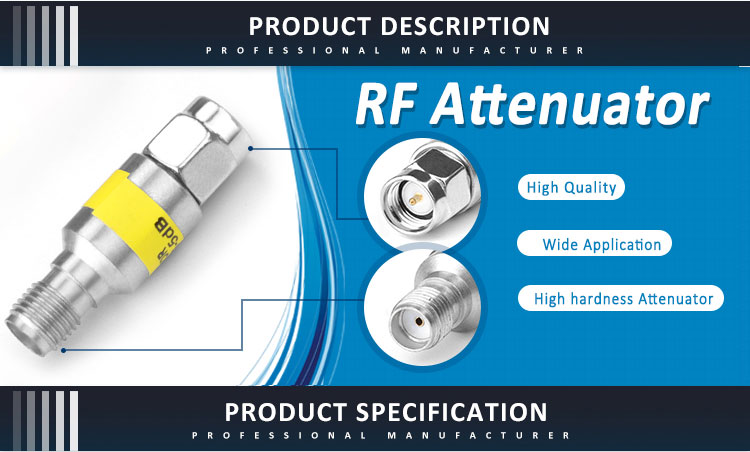

DC-6GHz 2W 1db.2db.3db.5db.6db.10db.20db.30db.40db.50db Attenuator with SMA male to female is a RF attenuator. The frequency covers DC-6000MHz and can handle signals in various frequency bands. The attenuation value range is 1 - 30dB, with an accuracy of ±0.3 - ±1.0dB, and can accurately control the signal strength. The maximum input power is 2W, the return loss is ≥19dB, and the standing wave ratio is ≤1.25, ensuring stable signal transmission. It uses an SMA male to female connector for easy connection of devices. The size is 26×9mm, the weight is 18g, it is small and portable, the operating temperature is -40℃ to +100℃, and it is suitable for a variety of RF scenarios.
Delivery
EXW,FOB,CIF,DAP
minimum order
20
Supply Ability
1000 / Week
Country of Origin
China
Stock Time
7Day
Quantity:
In the field of RF signal processing,DC-6GHz 2W attenuator SMA male to female 1db.2db.3db.5db.6db.10db.20db.30db.40db.50db Attenuation with SMA male to female DC - 6GHz 2W attenuator, SMA male to female attenuation is an excellent tool.
As a DC-6GHz 2W attenuator DC-6GHz 2W attenuator, its frequency coverage range is from DC-6GHz, and it can be widely used in many RF systems. The maximum input power is 2W, which can adapt to signal processing scenarios with various power levels.
Attenuation performance is its core advantage. The DC-6GHz 2W attenuator attenuation value range is 1 - 30dB, which can accurately adjust the signal strength according to actual needs. The attenuation accuracy is ±0.3 - ±1.0dB to ensure the accuracy of signal adjustment. Return loss ≥19dB, standing wave ratio ≤1.25, effectively reducing signal reflection and ensuring the stability of signal transmission.

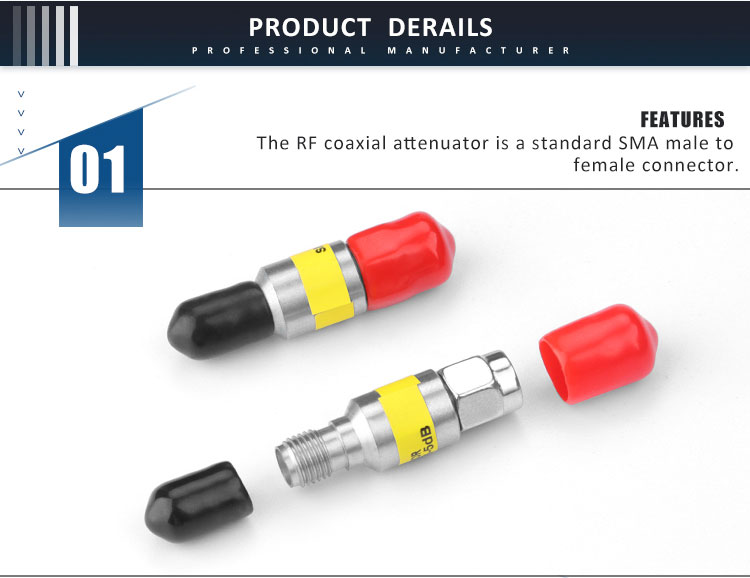

It uses SMA male to female connector, which has good electrical performance and mechanical stability, and is convenient for connection with various devices. The product size is only 26×9mm, weighs 18g, is small and light, and is easy to install and integrate into various systems.
The operating temperature range is -40℃ to +100℃, and the relative humidity is 5%-95%, which can adapt to a variety of complex environments. Whether our attenuation DC-6GHz 2W attenuator with SMA male to female signal optimization of communication base stations or signal testing in scientific research laboratories, this DC-6GHz 2W attenuator our attenuation DC-6GHz 2W attenuator with SMA male to female can become your reliable signal control partner with its excellent performance, precise control and convenient connection.
(attenuation DC-6GHz 2W attenuator with SMA male to female)
| Name | Attenuator |
| Frequency Range (MHz) | DC-6000MHz |
| Attenuates Value (dB) | 1-30 |
| Attenuates Tolerance (dB) | ±0.3-±1.0 |
| Return Loss(dB) | ≥19 |
| VSWR(dB) | ≤ 1.25 |
| Intermodulationg Products(dBm) | ≤ -120 dBc (with 2 x 43dBm) |
| Maximum Input (W) | 2 W |
| Operating temperature(℃) | -40℃ to +100℃ |
| Relative humidity(℃) | 5%~ 95 % |
| Impedance（Ω） | 50 Ω |
| Size（mm） | 26 x 9 mm |
| Weight(g) | 18g |
| Connector Type | SMA male to female |
| Ingress protection | IP65 |
| Color | Black or silver |
