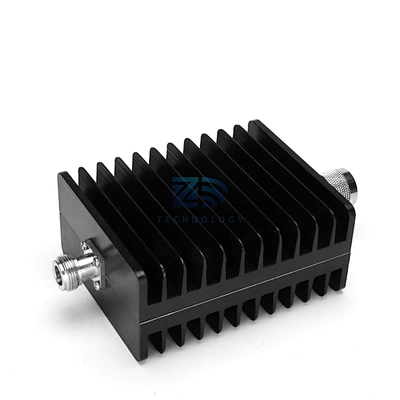

DC to 4000 MHz Coaxial N-Type male to female Fixed Attenuator 100W 40dB
ZD-ATT-100W-40dB-NM/NF
This 40dB bi‑directional fixed RF attenuator covers DC‑4000MHz with 100W average power rating and ±1.6dB attenuation accuracy. It delivers good VSWR performance with N‑Male / N‑Female connectors, usable up to 5GHz. Suitable for impedance matching, instrumentation and various RF test set‑ups.
Delivery
FOB
Country of Origin
CHINA
Quantity:
This 40dB bi‑directional fixed RF attenuator covers DC‑4000MHz with 100W average power rating and ±1.6dB attenuation accuracy. It delivers good VSWR performance with N‑Male / N‑Female connectors, usable up to 5GHz. Suitable for impedance matching, instrumentation and various RF test set‑ups.
Temperature coefficient for attenuation .0004dB/dB/℃ type
1.Useable to 5Ghz
2.Average power at 25℃ ambient,derate linearly to 50W at 100℃,bi-directional Peak power 1kW max.,5µ sec pulse width, 100 Hz PRF
Features
•DC to 4000 MHz
•excellent VSWR, 1.20:1
•N-Male and N-Female connectors
•bi-directional
Applications
•matching
•instrumentation
•test set-ups
| FREQ.RANGE | ATTENUATION (dB) | VSWR (:1) | POWER(W) | |||
| DC-0.5 GHz | 0.5-2 GHz | 2-4 GHz | ||||
| fL--fU | Nom. | ACCURACY | Max. | Max. | Max. | |
| DC-4000 | 40 | ±1.6 | 1.15 | 1.35 | 1.4 | 100 |
Temperature coefficient for attenuation .0004dB/dB/℃ type
1.Useable to 5Ghz
2.Average power at 25℃ ambient,derate linearly to 50W at 100℃,bi-directional Peak power 1kW max.,5µ sec pulse width, 100 Hz PRF
Features
•DC to 4000 MHz
•excellent VSWR, 1.20:1
•N-Male and N-Female connectors
•bi-directional
Applications
•matching
•instrumentation
•test set-ups
