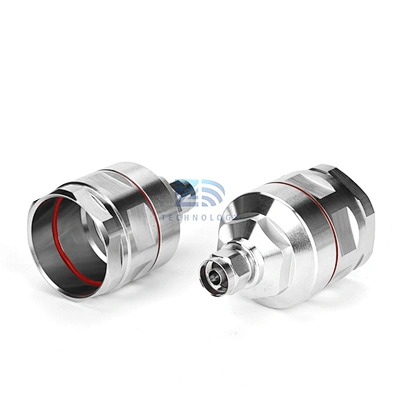

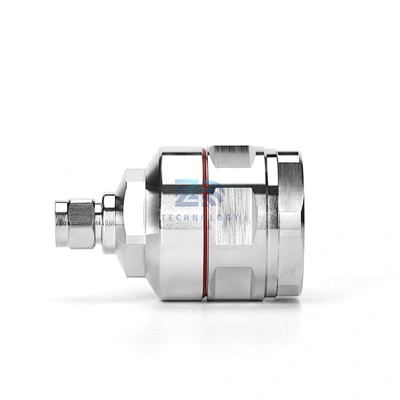

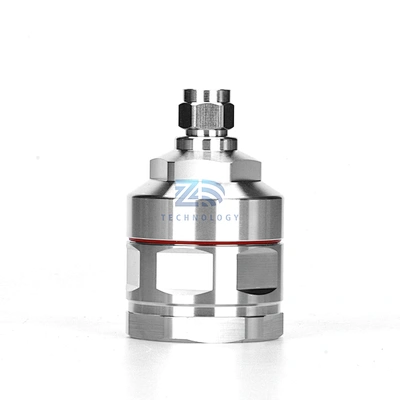

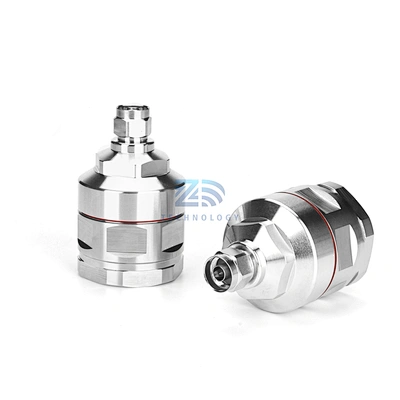

N male RF Connector For 1-5/8" flexible cable
ZD-CN-NM-CF158
Delivery
EXW,FOB,CIF,DAP
minimum order
50 pieces
Supply Ability
1000pieces / Week
Country of Origin
China
Stock Time
7Day
Quantity:
| Specification | ||
| N male connector for 1-5/8"feeder cable | ||
| 1. Material and Plating | ||
| Center contact | Tin-bronze/ Silver Plated | |
| Outer contact | Tin-bronze/ Silver Plated | |
| Body | Brass/ Silver Plated | |
| Dielectric | PTFE | |
| Gasket | Silicon Rubber | |
| Nut | Brass/ Nickel Plated | |
| 2. Electrical Characteristics | ||
| Characteristics Impedance | 50 Ohm | |
| Frequency Range | DC,2.5GHz | |
| Insulation Resistance | ≥10000 MΩ | |
| Center contact | 5 MΩ | |
| Outer contact | ≤1.O MΩ | |
| Dielectric Strength | 2500V rms | |
| Working voltage | 1400V rms | |
| Insertion Loss | ≤0.10dB@DC'3GHz | |
| VSWR | ≤1.20@DC'3.0GHz | |
| PIM(2x43dBm) | ≤-160dBc | |
| Durability (matings) | ≥500 cycles | |
| Temperature Range | -40~+85℃ | |
| RoHS | Compliant | |
