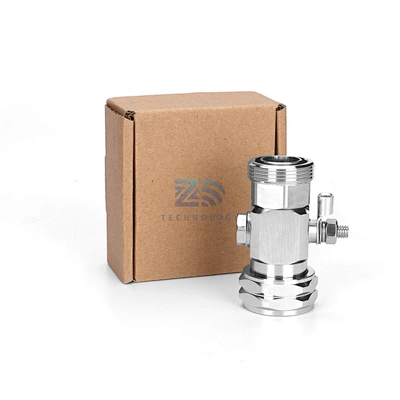

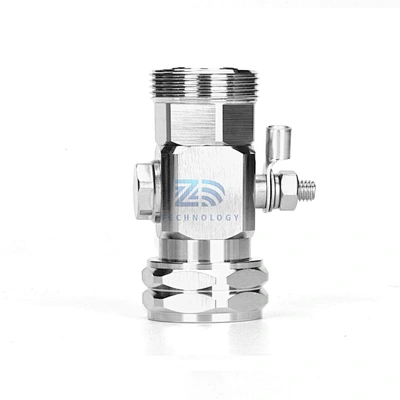

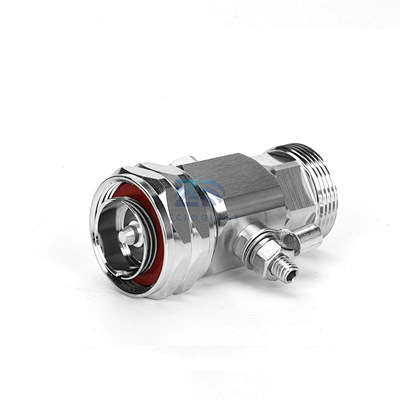

DC-3G GPS Lighting Surge arrestor with 7/16 type connector
ZD-LA-3G-DM-DF
Delivery
EXW,FOB,CIF,DAP
minimum order
50 pieces
Supply Ability
1000pieces / Week
Country of Origin
China
Stock Time
7Day
Quantity:
Speciation
| 0-3Ghz 7/16 Type Female to Male RF Surge | ||
| Model:ZD-LA-3G-DM-DF | ||
| Characteristic Impedance | 50Ω | |
| Frequency range | 0-3GHz | |
| Dielectric Withstanding Voltage | ≥4000VRMS,50Hz,at sea level or other | |
| VSWR | ≤ 1.2 | |
| Return loss | ≤ -26.4 dB | |
| Insulation resistance | ≥5000MΩ | |
| Piece part | Material plating | |
| Body | Brass Nickel plated | |
| Insulation Resistance | Phosphor bronze Gole or silver plated | |
| O-ring sealing | 6146 silastic | |
| Insulator | PTFE | |
| Temperature Range | -40°C~+85°C | |
| Connector type | Port 1: 7/16 female Port2: 7/16 female | |
| Max Surge Current | At least 10 times , Lighting Surge current 20kA, Lighting Surge Current Waveform 8/20 waveform | |
