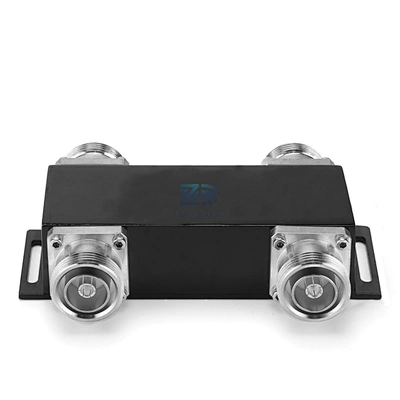

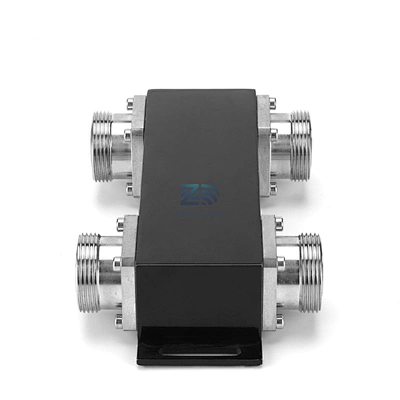

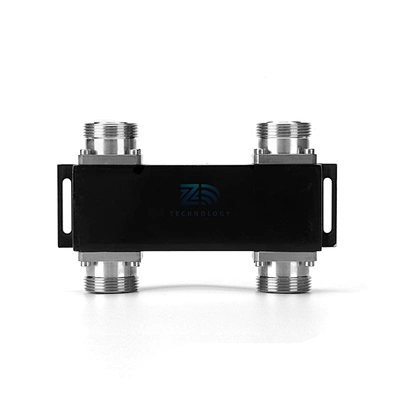

Waterproof 2 In 2 Out 3Db Hybrid Combiner Coupler with Din female 555-6000MHz

ZD-HC-560-300-2/2DF
This RF hybrid coupler covers 555‑6000MHz with 50Ω impedance and VSWR ≤1.3:1. It features low insertion loss, excellent ‑161dBc PIM performance and 300W power handling. With IP65 rating and D‑F connector, wide operating temperature for mobile‑communication RF signal distribution.
minimum order
1 piece
Country of Origin
CHINA
Quantity:
Contact Now
add to cart
This RF power divider covers 555‑6000MHz with 50Ω impedance and VSWR ≤1.3:1. It features low insertion loss, excellent ‑161dBc PIM performance and 300W power handling. With IP65 rating and D‑F connector, wide operating temperature for mobile‑communication RF signal distribution.
Electrical Specifications
Frequency:                            555-6000MHz
VSWR ≤1.3:1
Distribution Loss  3.1dB
Insertion loss    ≤1
PIM≤-161dBc @ 2 x 20 W
Output Isolation≤-22dB
Power handling 300W
Impedance  50W
Operating temperature range
Operating temperature range-25°C to +70°C
Storage temperature range-40°C to +85°C
Degree of protectionIP65
Mechanical Specifications
Connectors type  D-F
