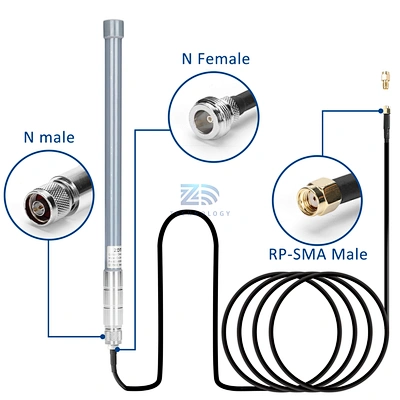

902-928MHz 7dBi Outdoor waterproof fiber glass Antenna
ZD-FGA-928-7SMAM
minimum order
20 pieces
Country of Origin
CHINA
Quantity:
| Electrical Specifications | |
| Frequency Range-MHz | 902-928 |
| VSWR | ≤1.5 |
| Gain-dBi | 7 |
| Horizontal 3dB Beam width-° | 360 |
| Vertical 3dB Beam width-° | 18 |
| Polarization | Vertical |
| Impedance-Ω | 50 |
| Max.Power-W | 100 |
| Mechanical Specifications | |
| Input Connector | N-male or customized |
| Net Weight-kg | 0.32 |
| Dimension-mm | 360x23 |
| Mounting Pole Diameter-mm | 30-55 |
| Operation Temperature-℃ | -40-+60 |
| Relative Humidity | 5%-95% |
| Main Fecture | |
| Outdoor omni antenna,Cover Lora900 band,Vertical polarziation,Fiberglass Radome | |
