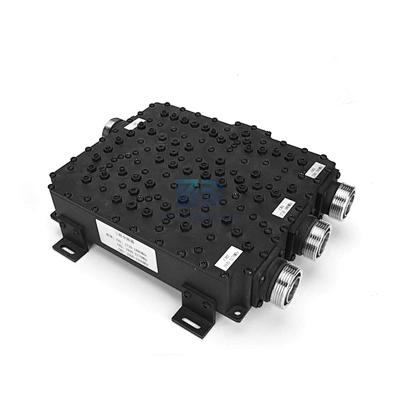

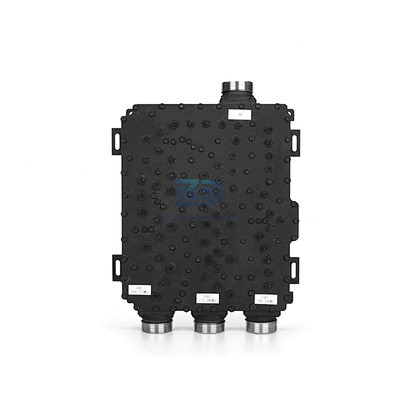

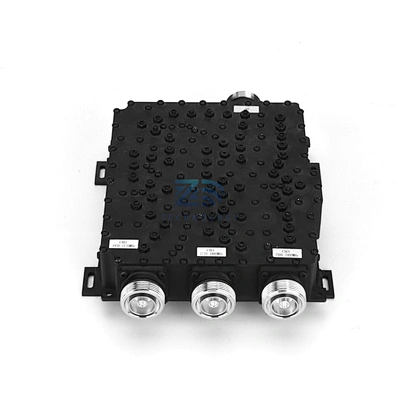

1800-2100-2300 Triplexer with DIN female
ZD-TP-182123-3/1DF
Quantity:
Specification
Electrical Specifications
Electrical Specifications
Frequency Range(MHz) | 1800 | 2100 | 2300 |
1710-1880 | 1920-2170 | 2300-2500 | |
Insertion Loss(dB) | ＜0.8 | ||
Isolation(dB) | ＞80 | ||
VSWR | ＜1.3 | ||
Power Handling(W) | 100 | ||
Impedance(Ω) | 50 | ||
Mechanical Specifications
Connectors | N-F |
Mounting | Mounting Holes |
Colour | Black |
Enviromental Specifications
Temperature Range(℃) | -20~+70 |
Application | Indoor |
