Penta combiner 380-960,1427-1880，1920-2170，2300-2690，3300-3800
ZD-PC-3838-155-5/1MF
This high‑performance penta‑band combiner combines five critical cellular frequency bands: 380‑960MHz,1427‑1880MHz,1920‑2170MHz,2300‑2690MHz and 3300‑3800MHz. It features low 0.5dB insertion loss, port isolation above 50dB, return loss ≥18dB and VSWR ≤1.3. With excellent low‑PIM performance ≤‑155dBc at 2×43dBm, maximum input power reaches 300W under standard 50‑ohm impedance. Available with N‑Female,4.3‑10‑Female and DIN‑Female connectors. Grey IP67 housing supports outdoor usage, equipped with 3kA lightning surge protection. It measures 260×195×52 mm at 3500g, operating from‑40℃ to +65℃ within 0‑95% humidity, ROHS compliant. This rugged penta‑band combiner is widely deployed for DAS and multi‑band 4G/5G cellular base‑station infrastructure.
Delivery
EXW,FOB,CIF
minimum order
1 piece
Country of Origin
CHINA
Quantity:
This premium penta band combiner, also known as rf penta combiner, is a robust 5‑band rf combiner and high‑grade multi band rf combiner for 4G & 5G cellular infrastructure. It combines five key frequency bands: 380‑960MHz,1427‑1880MHz,1920‑2170MHz,2300‑2690MHz,3300‑3800MHz. It delivers low insertion loss of 0.5dB, port isolation＞50dB, return loss ≥18dB and VSWR ≤1.3. Outstanding low‑PIM performance reaches ≤‑155dBc under 2×43dBm input, with maximum input power of 300W and standard 50‑ohm impedance. This penta band combiner supports N‑Female,4.3‑10‑Female and DIN‑Female connectors. Grey IP67 housing integrates 3kA lightning surge protection. Dimensions are 260×195×52 mm, weight 3500g, operating‑40℃~+65℃, humidity 0‑95%, fully ROHS compliant. The durable rf penta combiner, reliable 5‑band rf combiner and versatile multi band rf combiner, serves for outdoor DAS networks and multi‑band cellular base‑station projects.
◆Frequency covers 380-960,1427-1880，1920-2170，2300-2690，3300-3800MHz
◆Low PIM
◆Pole or wall mounting
◆Suitable for indoor and outdoor applications
Electrical Specifications
◆Low PIM
◆Pole or wall mounting
◆Suitable for indoor and outdoor applications
Electrical Specifications
| Product Name | Penta-Band Combiner | ||||
| Frequency Range (MHz) | 380-960 | 1427-1880 | 1920-2170 | 2300-2690 | 3300-3800 |
| Insertion Loss(dB) | .5 | ||||
| Isolation(dB) | >50 | ||||
| Return Loss(dB) | ≥18 | ||||
| VSWR(dB) | ≤ 1.3 | ||||
| PIM(dBm) | ≤ -155dBc (with 2 x 43dBm) | ||||
| Maximum Input (W) | 300W | ||||
| Operatingtemperature(℃) | -40℃ to +65℃ | ||||
| Relative humidity(℃) | 0 ~ 95 % | ||||
| Impedance（Ω） | 50 Ω | ||||

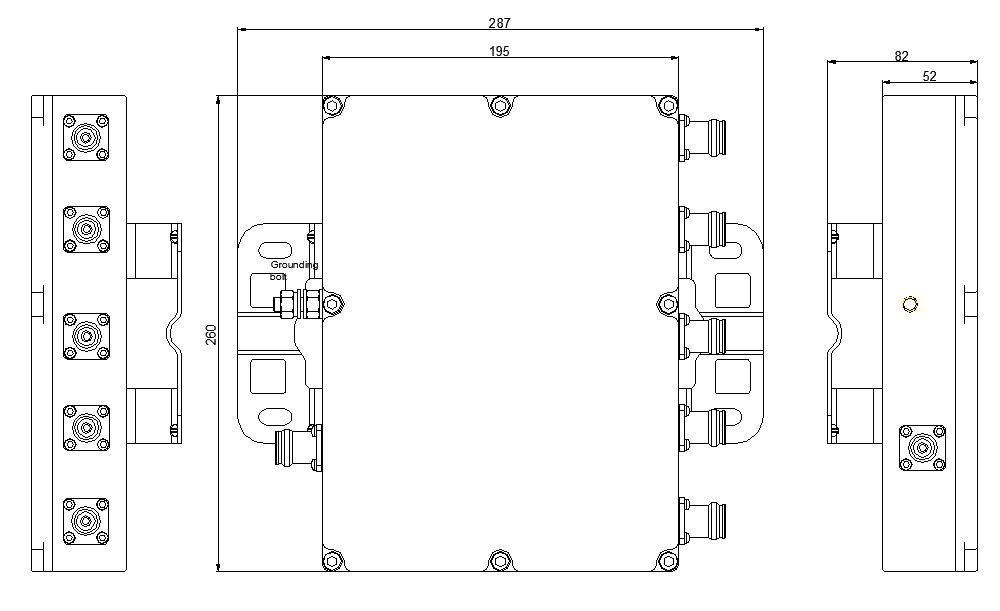

| Size（mm） | 260 X195 X52 mm | ||||
| Weight(g) | 3500g | ||||
| Lightning Protection | 3kA; 10/350 μs pulse | ||||
| Connector Type | N Female、4.3-10 Female、DIN Female | ||||
| Ingress protection | IP67 | ||||
| Color | Grey(ML440c) | ||||
| ROHS | Satisfy | ||||
