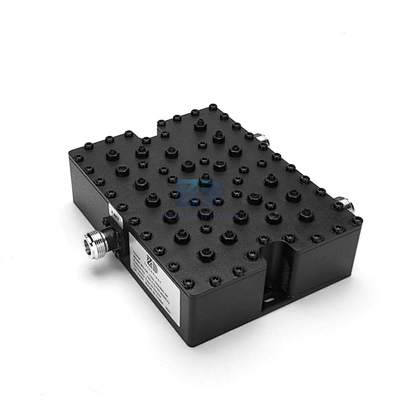

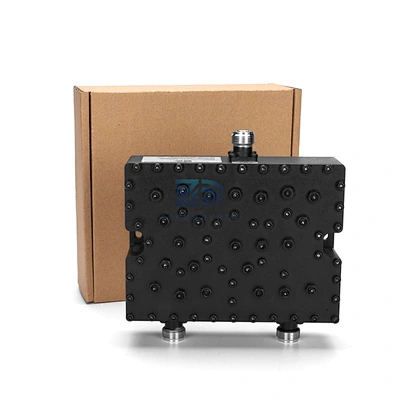

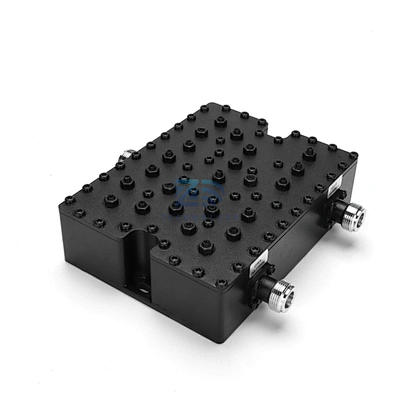

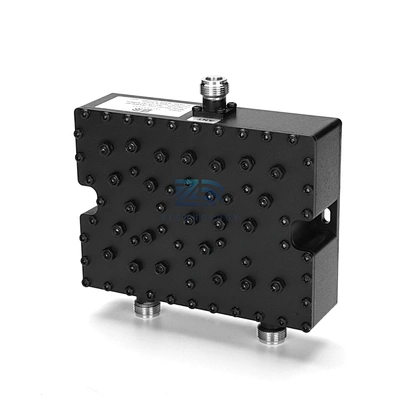

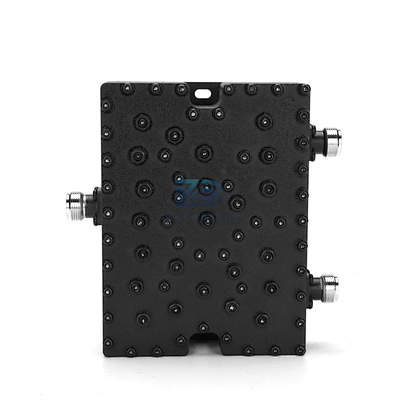

Dual band Diplexer 763-775/793-805MHz

This dual band diplexer is a high-performance rf diplexer built for combining/splitting signals in 763-775MHz and 793-805MHz dual frequency bands, serving as a core rf diplexer component for indoor RF systems. This dual band diplexer delivers top-tier electrical performance: insertion loss less than 2.5dB, VSWR better than 1.3:1, enabling low-loss, high-fidelity signal transmission; port isolation and out-of-band rejection both reach 70dB, completely blocking inter-band crosstalk and ensuring system anti-interference capability. As a high power RF device, it boasts a rated power handling capacity of 10W, standard 50Ω impedance matching, and is equipped with N-female (N-F) connectors for full compatibility. This high power dual band diplexer adopts a mounting hole fixation design with a compact, durable black appearance, operating at -20℃ to +65℃ and 5% to 97% humidity, ensuring stable reliability in various complex indoor environments. It is widely used in mobile communication, private network communication, signal relay and other scenarios, providing an efficient, stable band separation solution for RF systems.
