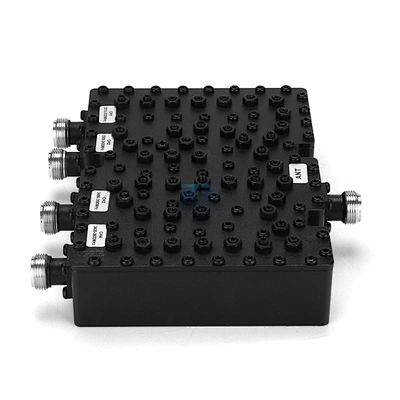

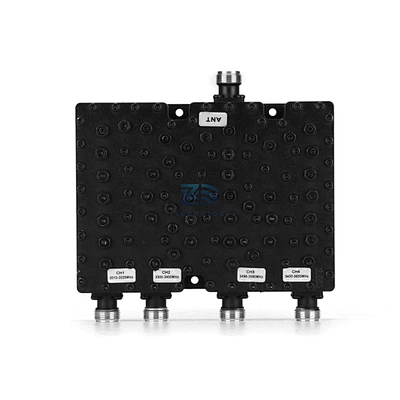

Customized Frequency Quad Band RF Combiner with N Female 2010-2025MHz 2300-2400MHz 2496-2690MHz 3400-3600MHz
ZD-QB-2010-3600-4/1NF
Country of Origin
china
Quantity:
Electrical Specifications
| Name | External Combiner | |||
| FrequencyRange (MHz) | 2010-2025 | 2300-2400 | 2496-2690 | 3400-3600 |
| Insertion Loss(dB) | ||||
| Isolation(dB) | >50 | |||
| VSWR(dB) | ≤ 1.3 | |||
| Intermodulationg Products(dBm) | ≤-143 dBc (with 2 x 43dBm) | |||
| Maximum Input (W) | 200 W | |||
| Operating temperature(℃) | -25℃ to +65℃ | |||
| Relative humidity(℃) | 0 ~ 95 | |||
| Impedance（Ω） | 50 Ω | |||
| Size（mm） | 164*104*32 | |||
| Weight(g) | ||||
| Connector Type | 5PCS N-female | |||
