80-470MHz RF 2 way Cavity Power Splitter/Divider with N Female Connectors

ZD-PS-085-300- 02NF
This 80‑470MHz 2 way cavity power splitter comes with N Female connectors, designed for RF signal distribution. It features low insertion loss ≤0.25dB, high isolation ≥20dB and return loss ≥19dB, with VSWR controlled under 1.25 for stable signal performance. The 50‑ohm divider supports max 2W input power. Compact grey housing measures 203×127.2×22.8 mm and weighs 1000g. It works reliably within‑25℃ ~ +60℃ operating temperature and 0‑95% humidity. Well‑suited for public radio, wireless communication and indoor signal distribution systems, it evenly divides RF signals for multi‑antenna deployment, offering consistent and dependable signal splitting performance for various RF projects.
Delivery
EXW,FOB,CIF,DAP
minimum order
40 pieces
Supply Ability
1000pieces / Week
Country of Origin
China
Stock Time
7Day
Quantity:
Contact Now
add to cart

This2 way cavity power splitter operates within 80‑470MHz frequency range, a reliable rf power divider fitted with N Female connectors for RF signal distribution. As a high‑performance 80‑470mhz power splitter, it delivers low insertion loss ≤0.25dB, high isolation ≥20dB and return loss ≥19dB, VSWR ≤1.25 for outstanding signal transmission quality. This n female power splitter adopts standard 50‑ohm impedance and supports maximum 2W input power. With solid grey housing, dimension 203×127.2×22.8mm and weight of 1000g, it can steadily run at‑25℃ to +60℃ and 0‑95% relative humidity. Perfect for UHF wireless communication and indoor RF distribution systems, it evenly splits RF signals for multi‑antenna setup, providing durable and consistent signal dividing capability for diverse RF engineering projects.

Name

Power Splitter

FrequencyRange  (MHz)

80-500MHz

For connecting …antennas

2 Way

3 Way

4 Way

Distribution Loss(dB)

3.5

5.5

7.0

Insertion Loss(dB)

≤0.25

≤0.35

≤0.4

Isolation(dB)

≥20

Return Loss(dB)

≥19

VSWR(dB)

≤  1.25

≤  1.3

≤  1.3

Intermodulationg Products(dBm)

/

Maximum  Input  (W)

2 W

Operating temperature(℃)

-25℃  to  +60℃

Relative humidity(℃)

0  ~ 95 %

Impedance (Ω)

50  Ω

Size（mm）

203x127.2x  22.8 mm

264x185x  22.8mm

320x233x  22.8mm

Weight(g)

1000  g

1800  g

3000  g

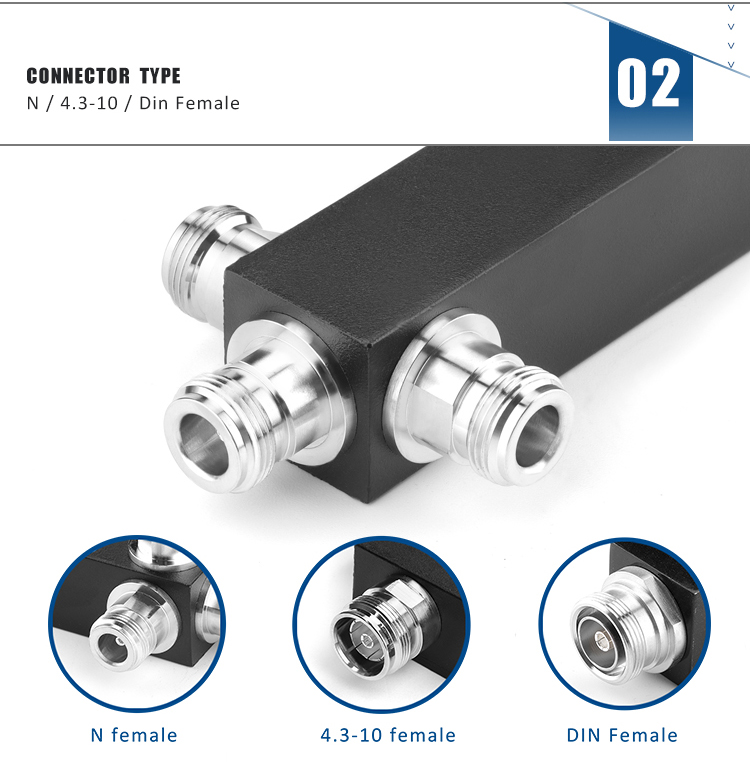

Connector Type

N  Female

Ingress protection

/

Color

grey
