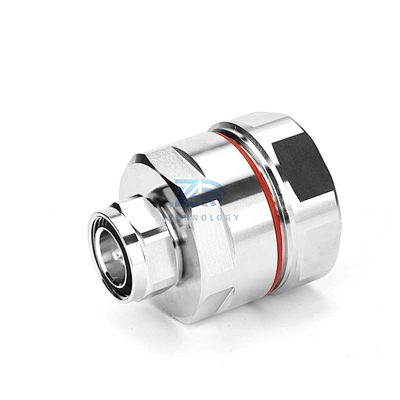

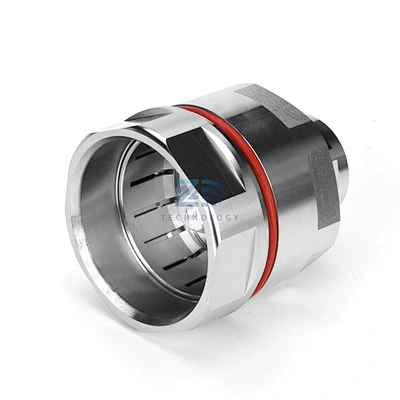

7/16 male RF Connector For 1-5/8" flexible cable

   In the field of RF communication, stable and reliable connection is essential. Cable Connector 7/16 male RF Connector For 1-5/8"flexible cable is a high-quality product to meet your connection needs.
 As a Cable Connector 7/16 male RF Connector For 1-5/8"flexible cable, Cable Connector 7/16 male RF Connector For 1-5/8"flexible cable plays a key role in RF signal transmission. Designed for 1 - 5/8"flexible cable, it can fit precisely and ensure a secure connection. Cable Connector 7/16 male RF Connector For 1-5/8"flexible cable is made of fine materials, with tin bronze silver-plated center contacts and external contacts, and the body of Cable Connector 7/16 male RF Connector For 1-5/8"flexible cable is brass silver-plated. The insulating medium is polytetrafluoroethylene (PTFE), the gasket is made of silicone rubber, and the nut is brass nickel-plated, which not only ensures good electrical performance, but also has excellent durability.

    In terms of electrical characteristics, the characteristic impedance of Cable Connector 7/16 male RF Connector For 1-5/8"flexible cable is 50 ohms, the frequency range is from DC to 2.5GHz, the insulation resistance is ≥10000 MΩ, the center contact resistance is 5 MΩ, the external contact resistance is ≤1.0 MΩ, and the dielectric strength is 2500V rms , working voltage 1400V rms. Insertion loss is ≤0.10dB at DC - 3.0GHz, voltage standing wave ratio (VSWR) is ≤1.20 at DC - 3.0GHz, intermodulation distortion (PIM, 2×43dBm) ≤ -160dBc, low signal transmission loss and high stability.

Cable Connector 7/16 male RF Connector For 1-5/8"flexible cable has a durability of ≥500 plugging and unplugging times, an operating temperature range of - 40℃ to + 85℃, and meets RoHS standards. As a Cable Connector 7/16 male RF Connector For 1-5/8"flexible cable, whether in communication base station construction, wireless network optimization, or in professional RF equipment connection, Cable Connector 7/16 male RF Connector For 1-5/8"flexible cable can rely on its reliable performance, stable connection and high-quality materials. It has become your trustworthy choice and ensures the stable transmission of RF signals.
